86UL3J-B.AMID
webOS UHD Signage
LG webOS UHD Signage
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

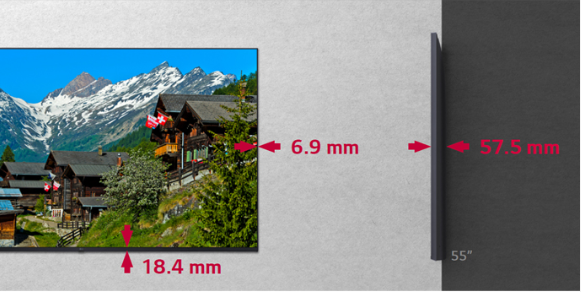

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

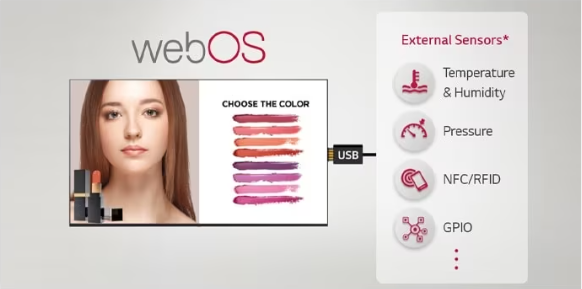

Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Specifications
-
PANEL
Screen Size (Inch)
86"
Panel Technology
ADS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840x2160 (UHD)
Refresh Rate
120Hz
Brightness
330nit (Typ.)
Contrast Ratio
1,400:1
Dynamic CR
1,000,000:1
Color Gamut
DCI 80%
Viewing Angle (H x V)
178x178
Color Depth (Number of Colors)
Advanced 8bit, 1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
1%
Life time
30,000Hrs (Min)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
No / Yes
CONNECTIVITY
HDMI In
Yes(3, HDCP 2.2/1.4)
RS232C In
Yes(4 Pin Phone-jack)
RJ45(LAN) In
Yes
USB In
2.0 (2, Type A)
Audio Out
Yes
RS232C Out
Yes(4 Pin Phone-jack)
MECHANICAL SPECIFICATION
Bezel Color
Ashed Blue
Bezel Width
Off : 6.9/6.9/6.9/18.4 On : 15.9/15.9/15.9/19.9
Weight (Head)
45.2
Packed Weight
57.7
Monitor Dimensions (W x H x D)
1927 x 1104 x 59.9
Carton Dimensions (W x H x D)
2115 x 1215 x 228
VESA Standard Mount Interface
600 x 400
FEATURE - HARDWARE
Internal Memory (eMMC)
16 GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Local Key Operation
Yes(Power On/Off Only)
FEATURE - SOFTWARE
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
Screen Share
Yes
Video Tag
Yes (4, Max One HDMI Input)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
ENVIRONMENT CONDITIONS
Operation Temperature
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity
10 % to 80 %
POWER
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ.
TBD W
Max.
TBD W
BTU (British Thermal Unit)
751 BTU/Hr(Typ.), 1024 BTU/Hr(Max.)
Smart Energy Saving (70%)
TBD W
DPM
0.5W
Power off
0.5W
SOUND
Speaker (Built-in)
Yes
CERTIFICATION
Safety
CB
EMC
FCC Class "A" / CE
ERP / Energy Star
Yes (OldErP for Jordan) / No
ePEAT(US only)
Yes
SOFTWARE COMPATIBILITY
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
Connected Care
Yes
LANGUAGE
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkiye, Arabic, polski
ACCESSORY
Basic
Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
